Products » Commercial & Industrial BESS

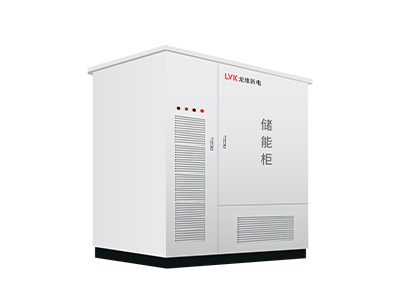

261kWh Commercial & Industrial BESS
Commercial & Industrial Energy Storage Cabinet
LVK-GS-261ESSC-100 INV commercial and industrial battery energy storage system with 261.248kWh rated capacity, 125kW AC maximum power, and IP55 protection.
- 261.248kWh Capacity
- 125kW Power
- LFP Battery Type
- Liquid Cooling Cooling
- IP54 IP Rating
Product features
High Safety
Mechanical safety protection system ensures system safety and reliability.
High Energy Density
High-quality LFP cells provide higher energy density and efficiency.
Long Cycle Life
6000+ cycles @ 80% DOD, lower degradation and longer service life.
Smart EMS
Intelligent EMS & EMS to optimize energy management and optimal charge management.
Modular Design
Modular design for easy installation, expansion and maintenance.
Specifications
| Item | LVK-GS-261ESSC-100 INV |
|---|---|
| Rated Energy | 261.248kWh |
| AC Max Power | 125kW |
| Battery Type | LFP |
| Protection | IP55 |
| Model | LVK-GS-261ESSC-100 INV |
| Product Model | LVK-GS-261ESSC-100 INV |
| Cell Capacity | 3.2V/314Ah |
| System Configuration | 1P260S |
| Rated Voltage | 832V |
| Voltage Range | DC754~936V |
| Maximum Current | 157A |
| AC Maximum Power | 125kW |
| PV Maximum Power | 120kW |
| AC Voltage | 380/400Vac |
| Rated Frequency | 50Hz |
| AC Connection | 3P+N+PE |
| Power Factor | 0.9cap~0.92ind |
| Protection Rating | IP55 |
| Operating Temperature | -40C~+60C (45/60C derating) |
| Storage Temperature | -30~45C |
| Operating Humidity | 0~95% non-condensing |
| Cooling Method | Intelligent air cooling or liquid cooling |
| Noise | <=75dB@1m |
| Maximum Altitude | 4000m (derating above 3000m) |
| Communication Interface | RS485/CAN, Ethernet, 4G/WiFi |
| Third-party Inverter Communication | Supported |
| Display | LED+LCD+APP |
| Dimensions | 1465x1350x2040mm |
| Reference Weight | 2320kg +/-5% |
